onert::backend::cpu::ops::ElementwiseActivationLayer Class Reference

#include <ElementwiseActivationLayer.h>

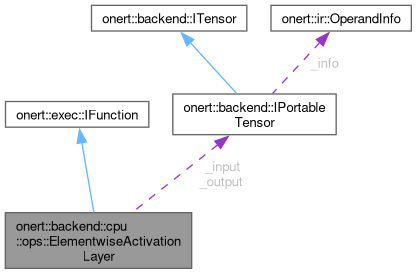

Collaboration diagram for onert::backend::cpu::ops::ElementwiseActivationLayer:

Public Member Functions

 ElementwiseActivationLayer ()

void configure (const IPortableTensor *input, IPortableTensor *output, float alpha, float beta, const ElementwiseActivationType op_type)

void run () override

void PopulateLookupTable (const ElementwiseActivationType op_type)

void EvalUsingLookupTable (const IPortableTensor *input, IPortableTensor *output)

- Public Member Functions inherited from onert::exec::IFunction
virtual ~IFunction ()=default

virtual void prepare ()


Protected Attributes

const IPortableTensor_input

IPortableTensor_output

uint8_t _table [256]

std::function< void(const IPortableTensor *input, IPortableTensor *output)> _kernel


Detailed Description

Definition at line 42 of file ElementwiseActivationLayer.h.

Constructor & Destructor Documentation

◆ ElementwiseActivationLayer()

onert::backend::cpu::ops::ElementwiseActivationLayer::ElementwiseActivationLayer ( )

Definition at line 37 of file ElementwiseActivationLayer.cc.

38 : _input(nullptr), _output(nullptr), _kernel()
39{
40 // DO NOTHING
41}
std::function< void(const IPortableTensor *input, IPortableTensor *output)> _kernel

Member Function Documentation

◆ configure()

void onert::backend::cpu::ops::ElementwiseActivationLayer::configure ( const IPortableTensor input,
IPortableTensor output,
float  alpha,
float  beta,
const ElementwiseActivationType  op_type
)

Definition at line 87 of file ElementwiseActivationLayer.cc.

90{
91 _input = input;
93
94 switch (op_type)
95 {
97 if (input->data_type() == OperandType::FLOAT32)
98 {
99 _kernel = [](const IPortableTensor *input, IPortableTensor *output) {
100 nnfw::cker::ELU(getShape(input), getBuffer<float>(input), getShape(output),
101 getBuffer<float>(output));
102 };
103 }
104 else
105 {
106 throw std::runtime_error{"ElementwiseActivationLayer(Elu): unsupported data type"};
107 }
108 break;
110 if (_input->data_type() == OperandType::QUANT_UINT8_ASYMM)
111 {
112 PopulateLookupTable(op_type);
114 std::placeholders::_1, std::placeholders::_2);
115 }
116 else if (_input->data_type() == OperandType::FLOAT32)
117 {
118 _kernel = [](const IPortableTensor *input, IPortableTensor *output) {
119 nnfw::cker::Logistic(getShape(input), getBuffer<float>(input), getShape(output),
120 getBuffer<float>(output));
121 };
122 }
123 else
124 {
125 throw std::runtime_error{"ElementwiseActivationLayer(Logistic): unsupported data type"};
126 }
127 break;
129 if (_input->data_type() == OperandType::FLOAT32)
130 {
131 if (alpha == std::numeric_limits<float>::infinity() && beta == 0.f)
132 {
133 _kernel = [](const IPortableTensor *input, IPortableTensor *output) {
134 nnfw::cker::ReLU(getShape(input), getBuffer<float>(input), getShape(output),
135 getBuffer<float>(output));
136 };
137 }
138 else if (alpha == 6.f && beta == 0.f)
139 {
140 _kernel = [](const IPortableTensor *input, IPortableTensor *output) {
141 nnfw::cker::ReLU6(getShape(input), getBuffer<float>(input), getShape(output),
142 getBuffer<float>(output));
143 };
144 }
145 else
146 {
147 throw std::runtime_error(
148 "ElementwiseActivationLayer : This layer suppports only ReLU(0-inf) and ReLU6(0-6)");
149 }
150 }
151 else
152 {
153 throw std::runtime_error{"ElementwiseActivationLayer(ReLU): unsupported data type"};
154 }
155 break;
157 if (_input->data_type() == OperandType::QUANT_UINT8_ASYMM)
158 {
159 PopulateLookupTable(op_type);
161 std::placeholders::_1, std::placeholders::_2);
162 }
163 else if (_input->data_type() == OperandType::FLOAT32)
164 {
165 _kernel = [](const IPortableTensor *input, IPortableTensor *output) {
166 nnfw::cker::Tanh(getShape(input), getBuffer<float>(input), getShape(output),
167 getBuffer<float>(output));
168 };
169 }
170 else
171 {
172 throw std::runtime_error{"ElementwiseActivationLayer(Tanh): unsupported data type"};
173 }
174 break;
176 if (_input->data_type() == OperandType::FLOAT32)
177 {
178 _kernel = [alpha](const IPortableTensor *input, IPortableTensor *output) {
180 getBuffer<float>(input), getShape(output),
181 getBuffer<float>(output));
182 };
183 }
184 else
185 {
186 throw std::runtime_error{"ElementwiseActivationLayer(LeakyReLU): unsupported data type"};
187 }
188 break;
189 default:
190 throw std::runtime_error("ElementwiseActivationLayer: unsupported op type");
191 }
192}
ir::DataType data_type() const override final
void PopulateLookupTable(const ElementwiseActivationType op_type)
void EvalUsingLookupTable(const IPortableTensor *input, IPortableTensor *output)
void LeakyReLU(const LeakyReluParams &params, const Shape &input_shape, const float *input_data, const Shape &output_shape, float *output_data)
Definition LeakyReLU.h:31
void Logistic(const Shape &input_shape, const float *input_data, const Shape &output_shape, float *output_data)
Definition Logistic.h:32
void Tanh(const Shape &input_shape, const float *input_data, const Shape &output_shape, float *output_data)
Definition Tanh.h:31
void ReLU6(const Shape &input_shape, const float *input_data, const Shape &output_shape, float *output_data)
Definition ReLU6.h:32
void ELU(const Shape &input_shape, const float *input_data, const Shape &output_shape, float *output_data)
Definition ELU.h:30
void ReLU(const Shape &input_shape, const float *input_data, const Shape &output_shape, float *output_data)
Definition ReLU.h:32
nnfw::cker::Shape getShape(const IPortableTensor *tensor)

References _input, _kernel, _output, onert::backend::IPortableTensor::data_type(), nnfw::cker::ELU(), EvalUsingLookupTable(), onert::backend::cpu::ops::getShape(), onert::backend::cpu::ops::kElu, onert::backend::cpu::ops::kLeakyReLU, onert::backend::cpu::ops::kLogistic, onert::backend::cpu::ops::kReLU, onert::backend::cpu::ops::kTanh, nnfw::cker::LeakyReLU(), nnfw::cker::Logistic(), PopulateLookupTable(), nnfw::cker::ReLU(), nnfw::cker::ReLU6(), and nnfw::cker::Tanh().

◆ EvalUsingLookupTable()

void onert::backend::cpu::ops::ElementwiseActivationLayer::EvalUsingLookupTable ( const IPortableTensor input,
IPortableTensor output
)

Definition at line 74 of file ElementwiseActivationLayer.cc.

76{
77 const int size = MatchingFlatSize(getShape(input), getShape(output));
78 const uint8_t *input_data = getBuffer<uint8_t>(input);
79 uint8_t *output_data = getBuffer<uint8_t>(output);
80
81 for (int i = 0; i < size; ++i)
82 {
84 }
85}
int MatchingFlatSize(const Dims< N > &dims, const Dims< N > &check_dims_0)
Definition Dims.h:108
list input_data
Definition infer.py:29
int32_t size[5]
Definition Slice.cpp:35

References _table, onert::backend::cpu::ops::getShape(), MatchingFlatSize(), and size.

Referenced by configure().

◆ PopulateLookupTable()

void onert::backend::cpu::ops::ElementwiseActivationLayer::PopulateLookupTable ( const ElementwiseActivationType  op_type)

Definition at line 43 of file ElementwiseActivationLayer.cc.

44{
45 const auto input_scale = static_cast<double>(_input->data_scale());
46 const auto input_zero_point = static_cast<int32_t>(_input->data_zero_point());
47 const auto output_scale = static_cast<double>(_output->data_scale());
48 const auto output_zero_point = static_cast<int32_t>(_output->data_zero_point());
49 const float inverse_scale = 1 / output_scale;
50 int32_t maxval = std::numeric_limits<uint8_t>::max();
51 int32_t minval = std::numeric_limits<uint8_t>::min();
52 for (int32_t val = minval; val <= maxval; ++val)
53 {
54 const float dequantized = input_scale * (val - input_zero_point);
55 float transformed = 0.f;
57 {
58 transformed = std::tanh(dequantized);
59 }
60 else if (op_type == ElementwiseActivationType::kLogistic)
61 {
62 transformed = 1.0f / (1.0f + std::exp(-dequantized));
63 }
64 else
65 {
66 throw std::runtime_error("ElementwiseActivationLayer : unsupported activation type");
67 }
68 const float rescaled = std::round(transformed * inverse_scale);
69 const int32_t quantized = static_cast<int32_t>(rescaled + output_zero_point);
70 _table[val] = static_cast<uint8_t>(std::max(std::min(maxval, quantized), minval));
71 }
72}
float data_scale() const override final
int32_t data_zero_point() const override final

References _input, _output, _table, onert::backend::IPortableTensor::data_scale(), onert::backend::IPortableTensor::data_zero_point(), onert::backend::cpu::ops::kLogistic, and onert::backend::cpu::ops::kTanh.

Referenced by configure().

◆ run()

void onert::backend::cpu::ops::ElementwiseActivationLayer::run ( )
overridevirtual

Field Documentation

◆ _input

const IPortableTensor* onert::backend::cpu::ops::ElementwiseActivationLayer::_input
protected

Definition at line 58 of file ElementwiseActivationLayer.h.

Referenced by configure(), PopulateLookupTable(), and run().

◆ _kernel

std::function<void(const IPortableTensor *input, IPortableTensor *output)> onert::backend::cpu::ops::ElementwiseActivationLayer::_kernel
protected

Definition at line 61 of file ElementwiseActivationLayer.h.

Referenced by configure(), and run().

◆ _output

IPortableTensor* onert::backend::cpu::ops::ElementwiseActivationLayer::_output
protected

◆ _table

uint8_t onert::backend::cpu::ops::ElementwiseActivationLayer::_table[256]
protected

Definition at line 60 of file ElementwiseActivationLayer.h.

Referenced by EvalUsingLookupTable(), and PopulateLookupTable().


The documentation for this class was generated from the following files:
