#include <UnidirectionalSequenceLSTM.h>

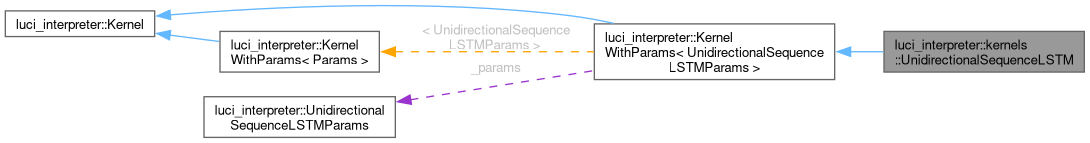

Collaboration diagram for luci_interpreter::kernels::UnidirectionalSequenceLSTM:

[legend]

Public Member Functions
	UnidirectionalSequenceLSTM (const Tensor input, const Tensor input_to_input_weights, const Tensor input_to_forget_weights, const Tensor input_to_cell_weights, const Tensor input_to_output_weights, const Tensor recurrent_to_input_weights, const Tensor recurrent_to_forget_weights, const Tensor recurrent_to_cell_weights, const Tensor recurrent_to_output_weights, const Tensor cell_to_input_weights, const Tensor cell_to_forget_weights, const Tensor cell_to_output_weights, const Tensor input_gate_bias, const Tensor forget_gate_bias, const Tensor cell_gate_bias, const Tensor output_gate_bias, const Tensor projection_weights, const Tensor projection_bias, const Tensor output_state, const Tensor cell_state, const Tensor input_layer_norm_coefficients, const Tensor forget_layer_norm_coefficients, const Tensor cell_layer_norm_coefficients, const Tensor output_layer_norm_coefficients, Tensor output, Tensor scratchpad_1, Tensor scratchpad_2, Tensor scratchpad_3, const UnidirectionalSequenceLSTMParams &params)

const Tensor *	input () const

const Tensor *	input_to_input_weights () const

const Tensor *	input_to_forget_weights () const

const Tensor *	input_to_cell_weights () const

const Tensor *	input_to_output_weights () const

const Tensor *	recurrent_to_input_weights () const

const Tensor *	recurrent_to_forget_weights () const

const Tensor *	recurrent_to_cell_weights () const

const Tensor *	recurrent_to_output_weights () const

const Tensor *	cell_to_input_weights () const

const Tensor *	cell_to_forget_weights () const

const Tensor *	cell_to_output_weights () const

const Tensor *	input_gate_bias () const

const Tensor *	forget_gate_bias () const

const Tensor *	cell_gate_bias () const

const Tensor *	output_gate_bias () const

const Tensor *	projection_weights () const

const Tensor *	projection_bias () const

const Tensor *	output_state () const

const Tensor *	cell_state () const

const Tensor *	input_layer_norm_coefficients () const

const Tensor *	forget_layer_norm_coefficients () const

const Tensor *	cell_layer_norm_coefficients () const

const Tensor *	output_layer_norm_coefficients () const

Tensor *	output () const

void	configure () override

void	execute () const override

Public Member Functions inherited from luci_interpreter::KernelWithParams< UnidirectionalSequenceLSTMParams >
const UnidirectionalSequenceLSTMParams &	params () const

Public Member Functions inherited from luci_interpreter::Kernel
virtual	~Kernel ()=default

const std::vector< const Tensor * > &	getInputTensors () const

const std::vector< Tensor * > &	getOutputTensors () const

Additional Inherited Members
Protected Member Functions inherited from luci_interpreter::KernelWithParams< UnidirectionalSequenceLSTMParams >
	KernelWithParams (std::vector< const Tensor * > inputs, std::vector< Tensor * > outputs, const UnidirectionalSequenceLSTMParams &params)

Protected Member Functions inherited from luci_interpreter::Kernel
	Kernel (std::vector< const Tensor * > inputs, std::vector< Tensor * > outputs)

Protected Attributes inherited from luci_interpreter::KernelWithParams< UnidirectionalSequenceLSTMParams >
const UnidirectionalSequenceLSTMParams	_params

Protected Attributes inherited from luci_interpreter::Kernel
const std::vector< const Tensor * >	_inputs

const std::vector< Tensor * >	_outputs

Detailed Description

Definition at line 29 of file UnidirectionalSequenceLSTM.h.

Constructor & Destructor Documentation

◆ UnidirectionalSequenceLSTM()

luci_interpreter::kernels::UnidirectionalSequenceLSTM::UnidirectionalSequenceLSTM	(	const Tensor *	input,
		const Tensor *	input_to_input_weights,
		const Tensor *	input_to_forget_weights,
		const Tensor *	input_to_cell_weights,
		const Tensor *	input_to_output_weights,
		const Tensor *	recurrent_to_input_weights,
		const Tensor *	recurrent_to_forget_weights,
		const Tensor *	recurrent_to_cell_weights,
		const Tensor *	recurrent_to_output_weights,
		const Tensor *	cell_to_input_weights,
		const Tensor *	cell_to_forget_weights,
		const Tensor *	cell_to_output_weights,
		const Tensor *	input_gate_bias,
		const Tensor *	forget_gate_bias,
		const Tensor *	cell_gate_bias,
		const Tensor *	output_gate_bias,
		const Tensor *	projection_weights,
		const Tensor *	projection_bias,
		const Tensor *	output_state,
		const Tensor *	cell_state,
		const Tensor *	input_layer_norm_coefficients,
		const Tensor *	forget_layer_norm_coefficients,
		const Tensor *	cell_layer_norm_coefficients,
		const Tensor *	output_layer_norm_coefficients,
		Tensor *	output,
		Tensor *	scratchpad_1,
		Tensor *	scratchpad_2,
		Tensor *	scratchpad_3,
		const UnidirectionalSequenceLSTMParams &	params
	)

Definition at line 440 of file UnidirectionalSequenceLSTM.cpp.

  : KernelWithParams<UnidirectionalSequenceLSTMParams>(
      {input,
       input_to_input_weights,
       input_to_forget_weights,
       input_to_cell_weights,
       input_to_output_weights,

       recurrent_to_input_weights,
       recurrent_to_forget_weights,
       recurrent_to_cell_weights,
       recurrent_to_output_weights,

       cell_to_input_weights,
       cell_to_forget_weights,
       cell_to_output_weights,

       input_gate_bias,
       forget_gate_bias,
       cell_gate_bias,
       output_gate_bias,

       projection_weights,
       projection_bias,

       output_state,
       cell_state,

       input_layer_norm_coefficients,
       forget_layer_norm_coefficients,
       cell_layer_norm_coefficients,
       output_layer_norm_coefficients},
      {output, scratchpad_1, scratchpad_2, scratchpad_3}, params)
{
  // Do nothing
}

References cell_gate_bias(), cell_layer_norm_coefficients(), cell_state(), cell_to_forget_weights(), cell_to_input_weights(), cell_to_output_weights(), forget_gate_bias(), forget_layer_norm_coefficients(), input(), input_gate_bias(), input_layer_norm_coefficients(), input_to_cell_weights(), input_to_forget_weights(), input_to_input_weights(), input_to_output_weights(), output_gate_bias(), output_layer_norm_coefficients(), output_state(), projection_bias(), projection_weights(), recurrent_to_cell_weights(), recurrent_to_forget_weights(), recurrent_to_input_weights(), and recurrent_to_output_weights().

Member Function Documentation

◆ cell_gate_bias()

const Tensor * luci_interpreter::kernels::UnidirectionalSequenceLSTM::cell_gate_bias ( ) const

inline

Definition at line 75 of file UnidirectionalSequenceLSTM.h.

75{ return _inputs[14]; }

luci_interpreter::Kernel::_inputs

const std::vector< const Tensor * > _inputs

Definition Kernel.h:52

References luci_interpreter::Kernel::_inputs.

Referenced by UnidirectionalSequenceLSTM().

◆ cell_layer_norm_coefficients()

const Tensor * luci_interpreter::kernels::UnidirectionalSequenceLSTM::cell_layer_norm_coefficients ( ) const

inline

Definition at line 86 of file UnidirectionalSequenceLSTM.h.

86{ return _inputs[22]; }

References luci_interpreter::Kernel::_inputs.

Referenced by UnidirectionalSequenceLSTM().

◆ cell_state()

const Tensor * luci_interpreter::kernels::UnidirectionalSequenceLSTM::cell_state ( ) const

inline

Definition at line 82 of file UnidirectionalSequenceLSTM.h.

82{ return _inputs[19]; }

References luci_interpreter::Kernel::_inputs.

Referenced by configure(), and UnidirectionalSequenceLSTM().

◆ cell_to_forget_weights()

const Tensor * luci_interpreter::kernels::UnidirectionalSequenceLSTM::cell_to_forget_weights ( ) const

inline

Definition at line 70 of file UnidirectionalSequenceLSTM.h.

70{ return _inputs[10]; }

References luci_interpreter::Kernel::_inputs.

Referenced by UnidirectionalSequenceLSTM().

◆ cell_to_input_weights()

const Tensor * luci_interpreter::kernels::UnidirectionalSequenceLSTM::cell_to_input_weights ( ) const

inline

Definition at line 69 of file UnidirectionalSequenceLSTM.h.

69{ return _inputs[9]; }

References luci_interpreter::Kernel::_inputs.

Referenced by UnidirectionalSequenceLSTM().

◆ cell_to_output_weights()

const Tensor * luci_interpreter::kernels::UnidirectionalSequenceLSTM::cell_to_output_weights ( ) const

inline

Definition at line 71 of file UnidirectionalSequenceLSTM.h.

71{ return _inputs[11]; }

References luci_interpreter::Kernel::_inputs.

Referenced by UnidirectionalSequenceLSTM().

◆ configure()

void luci_interpreter::kernels::UnidirectionalSequenceLSTM::configure ( )

overridevirtual

Implements luci_interpreter::Kernel.

Definition at line 751 of file UnidirectionalSequenceLSTM.cpp.

{
  LUCI_INTERPRETER_CHECK(getInputTensors().size() == 24);
  LUCI_INTERPRETER_CHECK(getOutputTensors().size() >= 1);

  // TODO support U8
  LUCI_INTERPRETER_CHECK(input()->element_type() == loco::DataType::FLOAT32);
  const bool is_integer = false;
  const bool use_layer_norm = (forget_layer_norm_coefficients() != nullptr);

  // Inferring batch size, number of outputs and sequence length and
  // number of cells from the input tensors.
  const Shape &input_shape = input()->shape();
  LUCI_INTERPRETER_CHECK(input_shape.num_dims() > 1);
  const bool time_major = params().time_major;
  const int n_batch = time_major ? input_shape.dim(1) : input_shape.dim(0);
  // NOTE as dim(2) is accessed, we need to check this is valid
  LUCI_INTERPRETER_CHECK(input_shape.num_dims() > 2);
  const int n_input = input_shape.dim(2);

  const Shape &input_to_output_weights_shape = input_to_output_weights()->shape();
  const int n_cell = input_to_output_weights_shape.dim(0);
  LUCI_INTERPRETER_CHECK(input_to_output_weights_shape.num_dims() == 2);
  LUCI_INTERPRETER_CHECK(input_to_output_weights_shape.dim(1) == n_input);

  const Shape &recurrent_to_output_weights_shape = recurrent_to_output_weights()->shape();
  LUCI_INTERPRETER_CHECK(recurrent_to_output_weights_shape.num_dims() == 2);
  LUCI_INTERPRETER_CHECK(recurrent_to_output_weights_shape.dim(0) == n_cell);

  const int n_output = recurrent_to_output_weights_shape.dim(1);

  // Check that input tensor dimensions matches with each other.
  check_input_tensor_dimensions(n_input, n_output, n_cell, use_layer_norm, is_integer);

  // Check the shape of input state tensors.
  // These tensor may be 1D or 2D. It's fine as long as the total size is
  // correct.
  const Shape &output_state_shape = output_state()->shape();
  const Shape &cell_state_shape = cell_state()->shape();
  LUCI_INTERPRETER_CHECK(output_state_shape.num_elements() == n_batch * n_output);
  LUCI_INTERPRETER_CHECK(cell_state_shape.num_elements() == n_batch * n_cell);

  // Resize the output tensors.
  Shape output_shape = Shape(input_shape.num_dims());
  for (int i = 0; i < input_shape.num_dims() - 1; i++)
  {
    output_shape.dim(i) = input_shape.dim(i);
  }
  output_shape.dim(input_shape.num_dims() - 1) = n_output;
  output()->resize(output_shape);

  // TODO import integer

  // output_state and cell_state are variable tensor; use scratchpad.
  getOutputTensors()[1]->resize(output_state_shape);
  getOutputTensors()[2]->resize(cell_state_shape);

  const bool use_cifg = (input_to_input_weights() == nullptr);
  if (use_cifg)
    getOutputTensors()[3]->resize({n_batch, n_cell * 3});
  else
    getOutputTensors()[3]->resize({n_batch, n_cell * 4});

  // hybrid not supported
  if (input_to_output_weights()->element_type() == loco::DataType::U8 &&
      input()->element_type() == loco::DataType::FLOAT32)
  {
    throw std::runtime_error("Hybrid type is not currently supported");
  }
  // TODO support hybrid
  // TODO support U8
}

References cell_state(), luci_interpreter::Shape::dim(), forget_layer_norm_coefficients(), luci_interpreter::Kernel::getInputTensors(), luci_interpreter::Kernel::getOutputTensors(), input(), input_to_input_weights(), input_to_output_weights(), LUCI_INTERPRETER_CHECK, luci_interpreter::Shape::num_dims(), luci_interpreter::Shape::num_elements(), output(), output_shape, output_state(), luci_interpreter::KernelWithParams< UnidirectionalSequenceLSTMParams >::params(), recurrent_to_output_weights(), luci_interpreter::Tensor::resize(), luci_interpreter::Tensor::shape(), size, and luci_interpreter::UnidirectionalSequenceLSTMParams::time_major.

◆ execute()

void luci_interpreter::kernels::UnidirectionalSequenceLSTM::execute ( ) const

overridevirtual

Implements luci_interpreter::Kernel.

Definition at line 824 of file UnidirectionalSequenceLSTM.cpp.

{
  switch (input()->element_type())
  {
    case loco::DataType::FLOAT32:
      evalFloat();
      break;
    default:
      throw std::runtime_error("Unsupported type");
  }
}

References input().

◆ forget_gate_bias()

const Tensor * luci_interpreter::kernels::UnidirectionalSequenceLSTM::forget_gate_bias ( ) const

inline

Definition at line 74 of file UnidirectionalSequenceLSTM.h.

74{ return _inputs[13]; }

References luci_interpreter::Kernel::_inputs.

Referenced by UnidirectionalSequenceLSTM().

◆ forget_layer_norm_coefficients()

const Tensor * luci_interpreter::kernels::UnidirectionalSequenceLSTM::forget_layer_norm_coefficients ( ) const

inline

Definition at line 85 of file UnidirectionalSequenceLSTM.h.

85{ return _inputs[21]; }

References luci_interpreter::Kernel::_inputs.

Referenced by configure(), and UnidirectionalSequenceLSTM().

◆ input()

const Tensor * luci_interpreter::kernels::UnidirectionalSequenceLSTM::input ( ) const

inline

Definition at line 57 of file UnidirectionalSequenceLSTM.h.

57{ return _inputs[0]; }

References luci_interpreter::Kernel::_inputs.

Referenced by configure(), execute(), and UnidirectionalSequenceLSTM().

◆ input_gate_bias()

const Tensor * luci_interpreter::kernels::UnidirectionalSequenceLSTM::input_gate_bias ( ) const

inline

Definition at line 73 of file UnidirectionalSequenceLSTM.h.

73{ return _inputs[12]; }

References luci_interpreter::Kernel::_inputs.

Referenced by UnidirectionalSequenceLSTM().

◆ input_layer_norm_coefficients()

const Tensor * luci_interpreter::kernels::UnidirectionalSequenceLSTM::input_layer_norm_coefficients ( ) const

inline

Definition at line 84 of file UnidirectionalSequenceLSTM.h.

84{ return _inputs[20]; }

References luci_interpreter::Kernel::_inputs.

Referenced by UnidirectionalSequenceLSTM().

◆ input_to_cell_weights()

const Tensor * luci_interpreter::kernels::UnidirectionalSequenceLSTM::input_to_cell_weights ( ) const

inline

Definition at line 61 of file UnidirectionalSequenceLSTM.h.

61{ return _inputs[3]; }

References luci_interpreter::Kernel::_inputs.

Referenced by UnidirectionalSequenceLSTM().

◆ input_to_forget_weights()

const Tensor * luci_interpreter::kernels::UnidirectionalSequenceLSTM::input_to_forget_weights ( ) const

inline

Definition at line 60 of file UnidirectionalSequenceLSTM.h.

60{ return _inputs[2]; }

References luci_interpreter::Kernel::_inputs.

Referenced by UnidirectionalSequenceLSTM().

◆ input_to_input_weights()

const Tensor * luci_interpreter::kernels::UnidirectionalSequenceLSTM::input_to_input_weights ( ) const

inline

Definition at line 59 of file UnidirectionalSequenceLSTM.h.

59{ return _inputs[1]; }

References luci_interpreter::Kernel::_inputs.

Referenced by configure(), and UnidirectionalSequenceLSTM().

◆ input_to_output_weights()

const Tensor * luci_interpreter::kernels::UnidirectionalSequenceLSTM::input_to_output_weights ( ) const

inline

Definition at line 62 of file UnidirectionalSequenceLSTM.h.

62{ return _inputs[4]; }

References luci_interpreter::Kernel::_inputs.

Referenced by configure(), and UnidirectionalSequenceLSTM().

◆ output()

Tensor * luci_interpreter::kernels::UnidirectionalSequenceLSTM::output ( ) const

inline

Definition at line 89 of file UnidirectionalSequenceLSTM.h.

89{ return _outputs[0]; }

luci_interpreter::Kernel::_outputs

const std::vector< Tensor * > _outputs

Definition Kernel.h:53

References luci_interpreter::Kernel::_outputs.

Referenced by configure().

◆ output_gate_bias()

const Tensor * luci_interpreter::kernels::UnidirectionalSequenceLSTM::output_gate_bias ( ) const

inline

Definition at line 76 of file UnidirectionalSequenceLSTM.h.

76{ return _inputs[15]; }

References luci_interpreter::Kernel::_inputs.

Referenced by UnidirectionalSequenceLSTM().

◆ output_layer_norm_coefficients()

const Tensor * luci_interpreter::kernels::UnidirectionalSequenceLSTM::output_layer_norm_coefficients ( ) const

inline

Definition at line 87 of file UnidirectionalSequenceLSTM.h.

87{ return _inputs[23]; }

References luci_interpreter::Kernel::_inputs.

Referenced by UnidirectionalSequenceLSTM().

◆ output_state()

const Tensor * luci_interpreter::kernels::UnidirectionalSequenceLSTM::output_state ( ) const

inline

Definition at line 81 of file UnidirectionalSequenceLSTM.h.

81{ return _inputs[18]; }

References luci_interpreter::Kernel::_inputs.

Referenced by configure(), and UnidirectionalSequenceLSTM().

◆ projection_bias()

const Tensor * luci_interpreter::kernels::UnidirectionalSequenceLSTM::projection_bias ( ) const

inline

Definition at line 79 of file UnidirectionalSequenceLSTM.h.

79{ return _inputs[17]; }

References luci_interpreter::Kernel::_inputs.

Referenced by UnidirectionalSequenceLSTM().

◆ projection_weights()

const Tensor * luci_interpreter::kernels::UnidirectionalSequenceLSTM::projection_weights ( ) const

inline

Definition at line 78 of file UnidirectionalSequenceLSTM.h.

78{ return _inputs[16]; }

References luci_interpreter::Kernel::_inputs.

Referenced by UnidirectionalSequenceLSTM().

◆ recurrent_to_cell_weights()

const Tensor * luci_interpreter::kernels::UnidirectionalSequenceLSTM::recurrent_to_cell_weights ( ) const

inline

Definition at line 66 of file UnidirectionalSequenceLSTM.h.

66{ return _inputs[7]; }

References luci_interpreter::Kernel::_inputs.

Referenced by UnidirectionalSequenceLSTM().

◆ recurrent_to_forget_weights()

const Tensor * luci_interpreter::kernels::UnidirectionalSequenceLSTM::recurrent_to_forget_weights ( ) const

inline

Definition at line 65 of file UnidirectionalSequenceLSTM.h.

65{ return _inputs[6]; }

References luci_interpreter::Kernel::_inputs.

Referenced by UnidirectionalSequenceLSTM().

◆ recurrent_to_input_weights()

const Tensor * luci_interpreter::kernels::UnidirectionalSequenceLSTM::recurrent_to_input_weights ( ) const

inline

Definition at line 64 of file UnidirectionalSequenceLSTM.h.

64{ return _inputs[5]; }

References luci_interpreter::Kernel::_inputs.

Referenced by UnidirectionalSequenceLSTM().

◆ recurrent_to_output_weights()

const Tensor * luci_interpreter::kernels::UnidirectionalSequenceLSTM::recurrent_to_output_weights ( ) const

inline

Definition at line 67 of file UnidirectionalSequenceLSTM.h.

67{ return _inputs[8]; }

References luci_interpreter::Kernel::_inputs.

Referenced by configure(), and UnidirectionalSequenceLSTM().

The documentation for this class was generated from the following files:

compiler/luci-interpreter/src/kernels/UnidirectionalSequenceLSTM.h
compiler/luci-interpreter/src/kernels/UnidirectionalSequenceLSTM.cpp

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ UnidirectionalSequenceLSTM()

Member Function Documentation

◆ cell_gate_bias()

◆ cell_layer_norm_coefficients()

◆ cell_state()

◆ cell_to_forget_weights()

◆ cell_to_input_weights()

◆ cell_to_output_weights()

◆ configure()

◆ execute()

◆ forget_gate_bias()

◆ forget_layer_norm_coefficients()

◆ input()

◆ input_gate_bias()

◆ input_layer_norm_coefficients()

◆ input_to_cell_weights()

◆ input_to_forget_weights()

◆ input_to_input_weights()

◆ input_to_output_weights()

◆ output()

◆ output_gate_bias()

◆ output_layer_norm_coefficients()

◆ output_state()

◆ projection_bias()

◆ projection_weights()

◆ recurrent_to_cell_weights()

◆ recurrent_to_forget_weights()

◆ recurrent_to_input_weights()

◆ recurrent_to_output_weights()
