luci::CircleOutput Class Reference

CircleNode for Output of the Graph. More...

#include <CircleOutput.h>

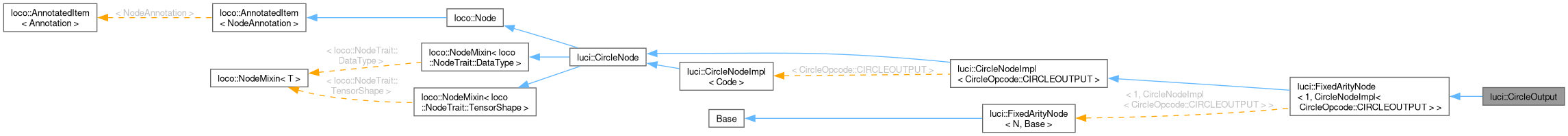

Collaboration diagram for luci::CircleOutput:

Public Member Functions
void	index (const loco::GraphOutputIndex &index)
loco::GraphOutputIndex	index (void) const
bool	indexed (void) const
loco::Node *	from (void) const
void	from (loco::Node *node)
Public Member Functions inherited from luci::FixedArityNode< 1, CircleNodeImpl< CircleOpcode::CIRCLEOUTPUT > >
	FixedArityNode ()
virtual	~FixedArityNode ()=default
uint32_t	arity (void) const final
loco::Node *	arg (uint32_t n) const final
void	drop (void) final
Public Member Functions inherited from luci::CircleNodeImpl< CircleOpcode::CIRCLEOUTPUT >
virtual	~CircleNodeImpl ()=default
uint32_t	opnum (void) const final
CircleOpcode	opcode (void) const final
Public Member Functions inherited from luci::CircleNode
virtual	~CircleNode ()=default
const loco::Dialect *	dialect (void) const final
	Return "Dialect" identifier that this node belongs to.
template<typename T >
T	accept (CircleNodeVisitorBase< T > *) const
template<typename T >
T	accept (CircleNodeMutableVisitorBase< T > *)
NodeName	name (void) const
void	name (const NodeName &name)
CircleQuantParam *	quantparam (void) const
void	quantparam (std::unique_ptr< CircleQuantParam > &&quantparam)
CircleMXQuantParam *	mx_quantparam (void) const
void	mx_quantparam (std::unique_ptr< CircleMXQuantParam > &&mx_quantparam)
SparsityParam *	sparsityparam (void) const
void	sparsityparam (std::unique_ptr< SparsityParam > &&sparsityparam)
ShapeStatus	shape_status (void) const
void	shape_status (ShapeStatus ss)
int32_t	op_version (void) const
void	op_version (int32_t op_version)
Public Member Functions inherited from loco::Node
	Node ()=default
	Node (const Node &)=delete
	Node (Node &&)=delete
virtual	~Node ()
Graph *	graph (void)
const Graph *	graph (void) const
Public Member Functions inherited from loco::AnnotatedItem< NodeAnnotation >
	AnnotatedItem ()=default
virtual	~AnnotatedItem ()=default
const T *	annot (void) const
	Retrieve a stored annotation of type T.
void	annot (std::unique_ptr< T > &&p)
	Attach or remove a new annotation of type T.

Additional Inherited Members
Protected Member Functions inherited from luci::FixedArityNode< 1, CircleNodeImpl< CircleOpcode::CIRCLEOUTPUT > >
loco::Use *	at (uint32_t n) const

Detailed Description

CircleNode for Output of the Graph.

Note

This will not be exported as a specific op

Definition at line 34 of file CircleOutput.h.

Member Function Documentation

from() [1/2]

void luci::CircleOutput::from ( loco::Node *  node )

inline

Definition at line 44 of file CircleOutput.h.

{ at(0)->node(node); }

References luci::FixedArityNode< 1, CircleNodeImpl< CircleOpcode::CIRCLEOUTPUT > >::at(), and loco::Use::node().

from() [2/2]

loco::Node * luci::CircleOutput::from ( void  ) const

inline

Definition at line 43 of file CircleOutput.h.

{ return at(0)->node(); }

References luci::FixedArityNode< 1, CircleNodeImpl< CircleOpcode::CIRCLEOUTPUT > >::at(), and loco::Use::node().

Referenced by luci::test::TestGraph::complete(), luci::test::TestGraph::complete(), luci::ConstantFoldingAddTestGraph::ConstantFoldingAddTestGraph(), luci::FuseBCQPass::run(), and luci::sinf::Algorithm::visit().

index() [1/2]

void luci::CircleOutput::index

(

const loco::GraphOutputIndex &

index

)

Definition at line 25 of file CircleOutput.cpp.

{
  // CircleOutput internally stores "GraphOutputIndex" as int64_t
  _index = static_cast<int64_t>(index);
}

References index(), and luci::must_cast().

Referenced by onert.experimental.train.dataloader.DataLoader::__next__(), luci::ConstantFoldingTestGraph::ConstantFoldingTestGraph(), luci_interpreter::Interpreter::getOutputTensorSize(), circle_eval_diff::interpret(), luci::link(), luci_interpreter::Interpreter::readOutputTensor(), and luci::FuseBCQPass::run().

index() [2/2]

loco::GraphOutputIndex luci::CircleOutput::index

(

void

)

const

Definition at line 31 of file CircleOutput.cpp.

{
  assert(_index >= std::numeric_limits<loco::GraphOutputIndex>::min());
  assert(_index <= std::numeric_limits<loco::GraphOutputIndex>::max());
  return static_cast<loco::GraphOutputIndex>(_index);
}

Referenced by onert.experimental.train.dataloader.DataLoader::__next__(), and index().

indexed()

bool luci::CircleOutput::indexed ( void  ) const

inline

Definition at line 40 of file CircleOutput.h.

{ return _index != -1; }

---

The documentation for this class was generated from the following files:

• compiler/luci/lang/include/luci/IR/Nodes/CircleOutput.h
• compiler/luci/lang/src/Nodes/CircleOutput.cpp
