loco::BiasAdd< Domain::Feature > Class Reference

Add Feature and Bias along "depth" axis. More...

#include <Nodes.h>

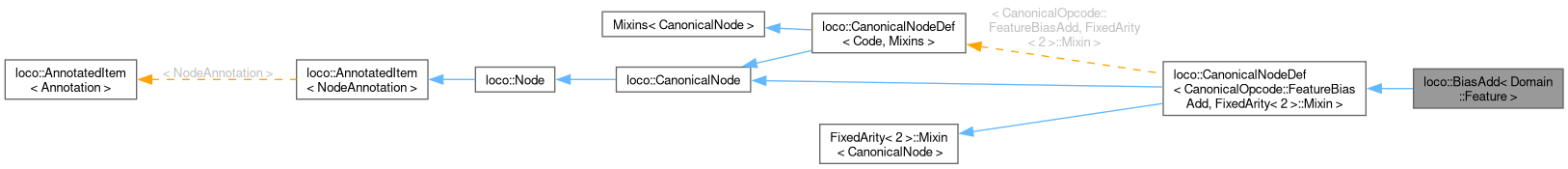

Collaboration diagram for loco::BiasAdd< Domain::Feature >:

Public Member Functions
	BiasAdd ()=default
Node *	value (void) const
void	value (Node *node)
Node *	bias (void) const
void	bias (Node *node)
Public Member Functions inherited from loco::CanonicalNodeDef< CanonicalOpcode::FeatureBiasAdd, FixedArity< 2 >::Mixin >
virtual	~CanonicalNodeDef ()=default
uint32_t	opnum (void) const final
CanonicalOpcode	opcode (void) const final
Public Member Functions inherited from loco::CanonicalNode
virtual	~CanonicalNode ()=default
const Dialect *	dialect (void) const final
	Return "Dialect" identifier that this node belongs to.
template<typename T >
T	accept (CanonicalNodeVisitorBase< T > *) const
template<typename T >
T	accept (CanonicalNodeMutableVisitorBase< T > *)
Public Member Functions inherited from loco::Node
	Node ()=default
	Node (const Node &)=delete
	Node (Node &&)=delete
virtual	~Node ()
Graph *	graph (void)
const Graph *	graph (void) const
virtual uint32_t	arity (void) const =0
	Return the number of arguments.
virtual Node *	arg (uint32_t N) const =0
	Access N-th argument node.
virtual void	drop (void)=0
	Drop all the reference of arguments.
Public Member Functions inherited from loco::AnnotatedItem< NodeAnnotation >
	AnnotatedItem ()=default
virtual	~AnnotatedItem ()=default
const T *	annot (void) const
	Retrieve a stored annotation of type T.
void	annot (std::unique_ptr< T > &&p)
	Attach or remove a new annotation of type T.

Detailed Description

Add Feature and Bias along "depth" axis.

for each valid feature index (b, ch, row, col) out(b, ch, row, col) = value(b, ch, row, col) + bias(ch)

Definition at line 815 of file Nodes.h.

Constructor & Destructor Documentation

BiasAdd()

loco::BiasAdd< Domain::Feature >::BiasAdd ( )

default

Member Function Documentation

bias() [1/2]

void loco::BiasAdd< Domain::Feature >::bias ( Node *  node )

inline

Definition at line 826 of file Nodes.h.

{ return at(1)->node(node); }

bias() [2/2]

Node * loco::BiasAdd< Domain::Feature >::bias ( void  ) const

inline

Definition at line 825 of file Nodes.h.

{ return at(1)->node(); }

Referenced by exo::FeatureBiasAddConverter::convert().

value() [1/2]

void loco::BiasAdd< Domain::Feature >::value ( Node *  node )

inline

Definition at line 823 of file Nodes.h.

{ return at(0)->node(node); }

value() [2/2]

Node * loco::BiasAdd< Domain::Feature >::value ( void  ) const

inline

Definition at line 822 of file Nodes.h.

{ return at(0)->node(); }

Referenced by exo::FeatureBiasAddConverter::convert().

---

The documentation for this class was generated from the following file:

• compiler/loco/include/loco/IR/Nodes.h
